9a.3 Frequency sweep time in different frequency ranges at for NanoVNA.
Further on the page are only oscillograms of sweep time in different frequency ranges:
Further on the page are only oscillograms of sweep time in different frequency ranges:
- directly from output Ch0 (S11);
- without 50 Ohms load.

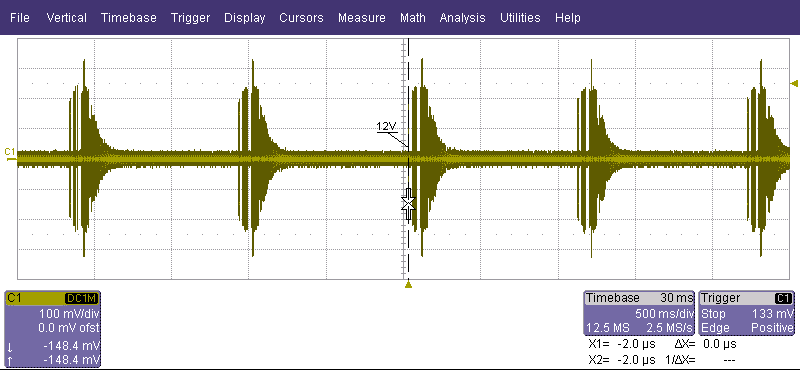

From 50kHz to 3 GHz :

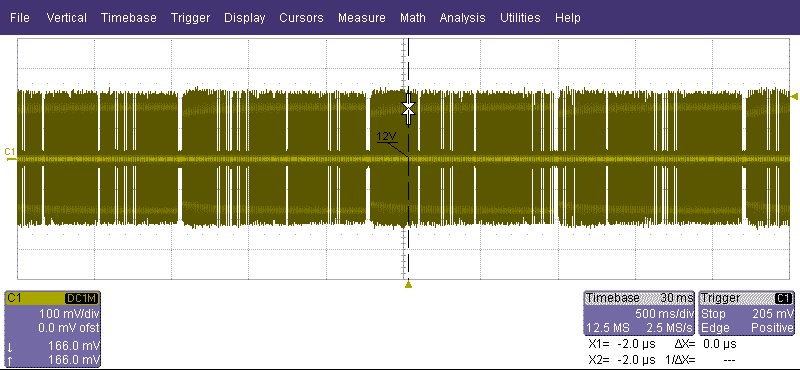

From 525kHz to 1700 kHz :
From 50kHz to 100MHz :
From 100MHz to 900MHz :
From 108MHz to 138Hz :
From 108MHz to 3 GHz :
Additionally, for a note:
