Waveforms for SR radio (for my self, only).
3.1.A SR Receiver, waveforms, Test point B.
A. Waveforms at Tp.A.
B. Waveforms at Tp.B (you are here).
C. Waveforms at Tp.C.

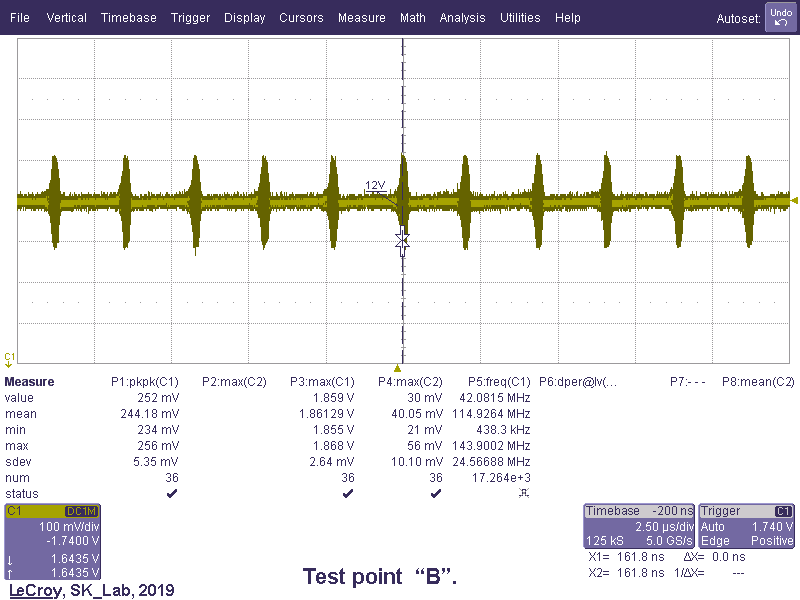

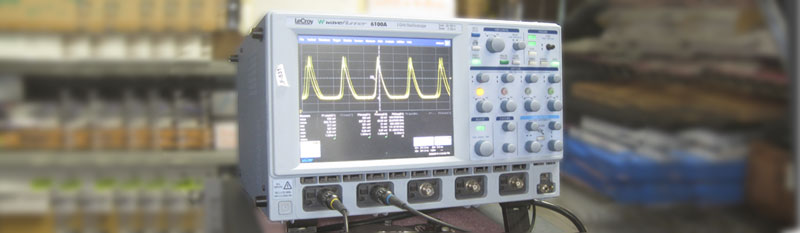

The following wave forms show what happens at test point "B".

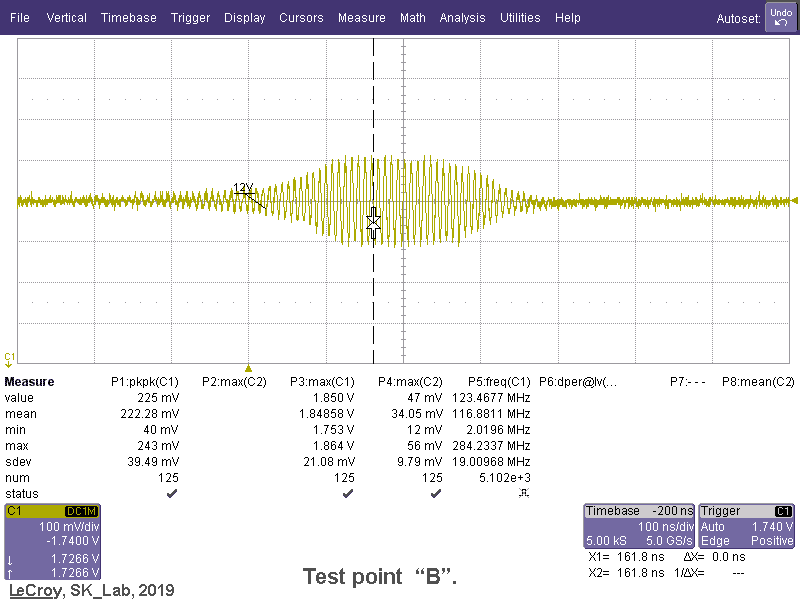

The most obvious of them next.

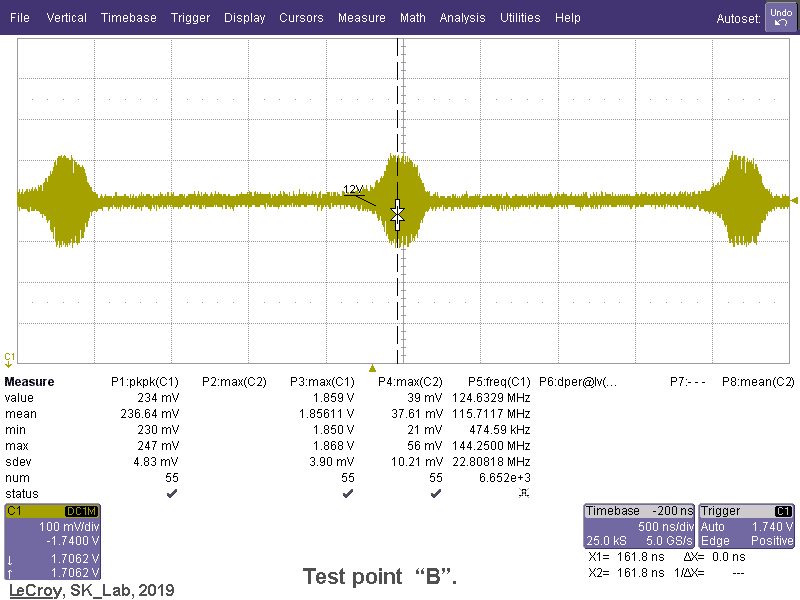

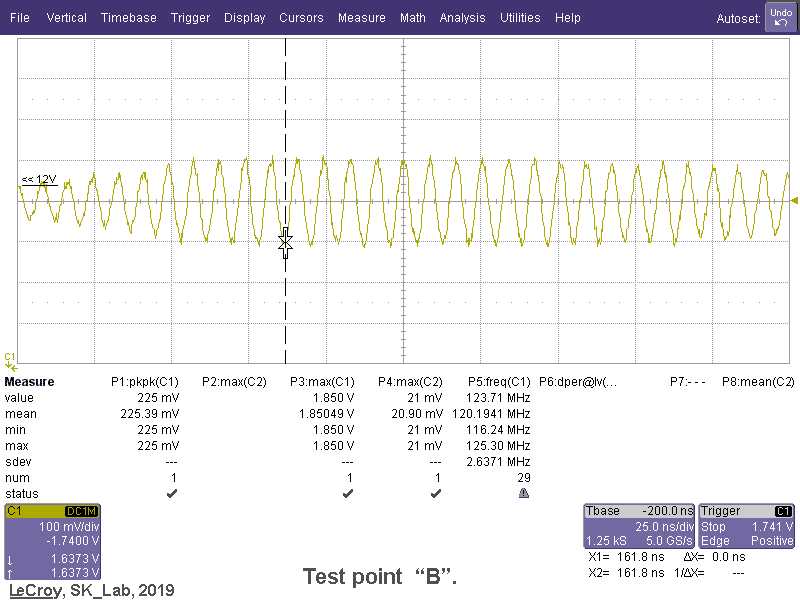

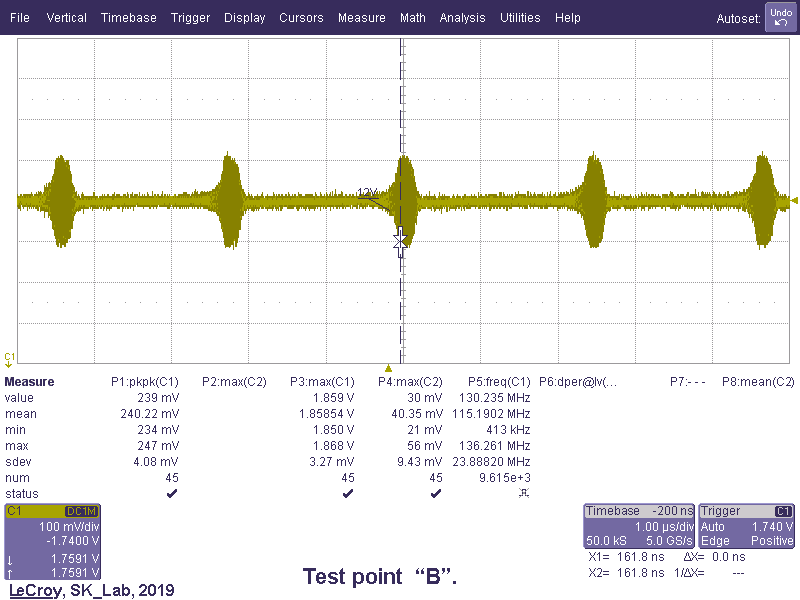

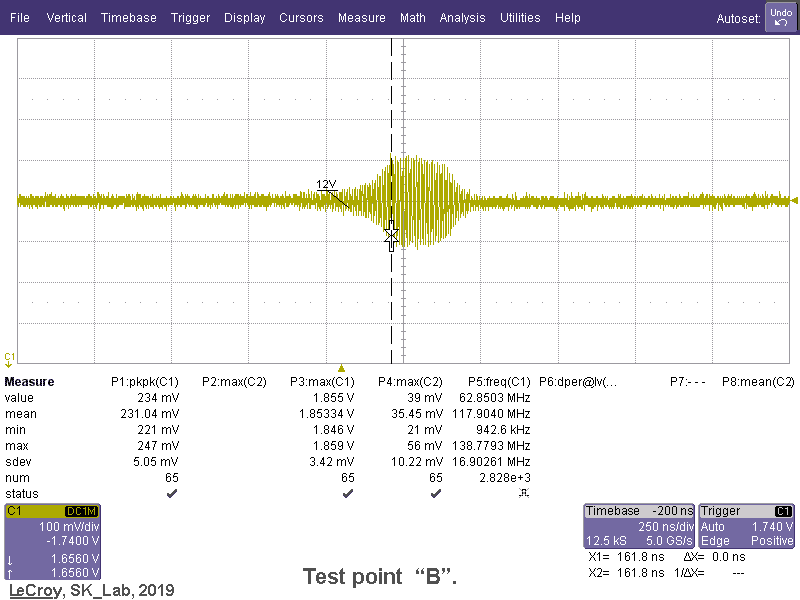

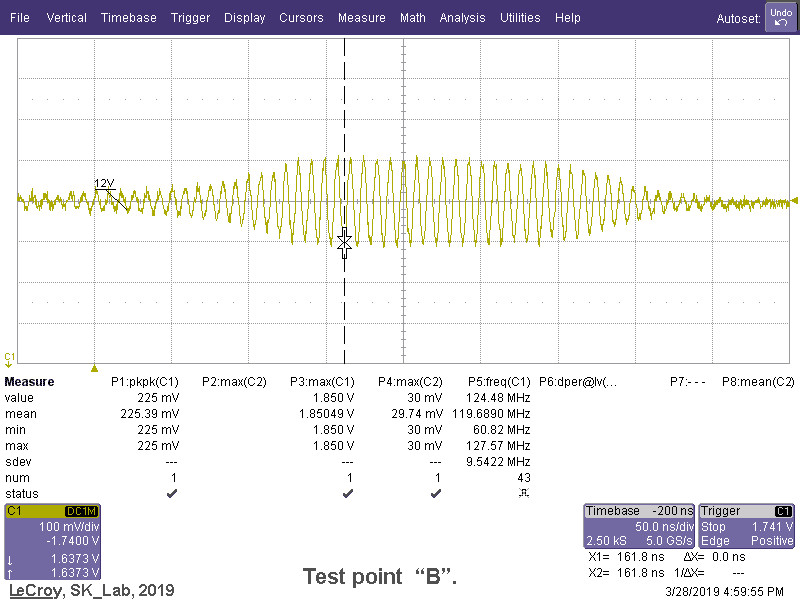

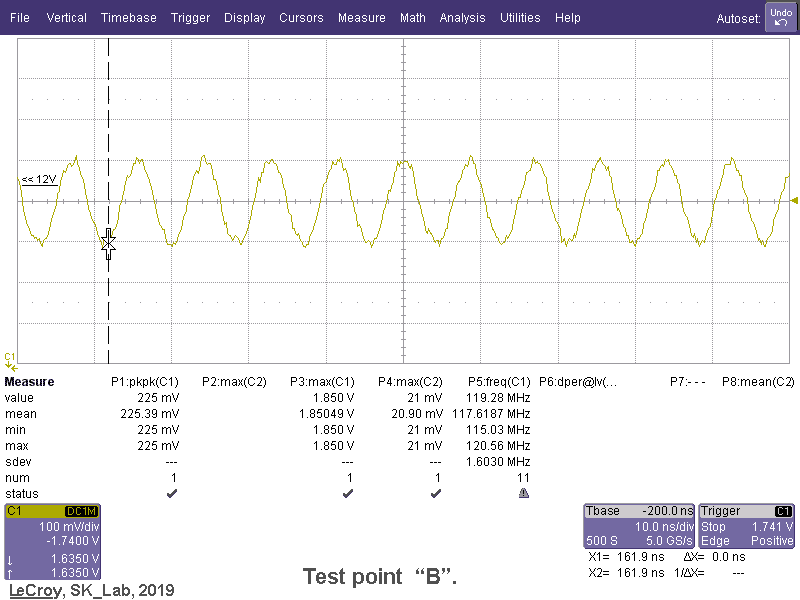

The following only show the same, only with different sweep times (up to 10nS/dev).
*** And if you have "something" to add or have questions, then my address below.
